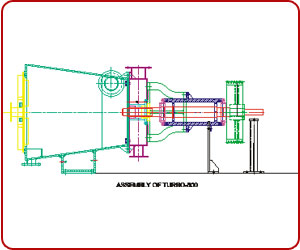

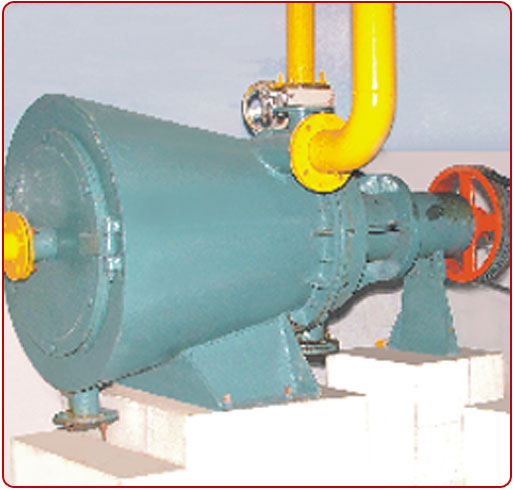

Turbo Separator
arrow_01 Effective Separation of heavy & light material (Metal pieces, Pins, Plastics) from pulp.
arrow_01 Easy maintenance and minimum fiber loss.
arrow_01 The body is made out of mild steel with S.S. cladding. Special model is also available in S.S. 316 Sandwitch plate (S.S. and M.S.) with base frame and stifners in M.S.
arrow_01 A cyclone effect is formed in the separator by the S.S. Rotor, So heavy particle are carried outward by centrifugal force to the junk trap. The light rejection is further treated in secondary separator or vibrating screen.
Type T-300 T-400 T-500 T-600 T-800 T-900
Capacity Tons / day 8-12 15-25 40-50 55-70 70-90 90-100
Motor rating kw 7.5-12 20-30 45-55 60-75 70-90 90-100
