high_density_cleaner

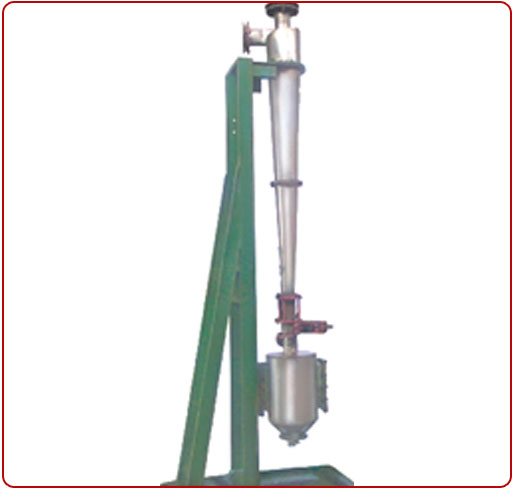

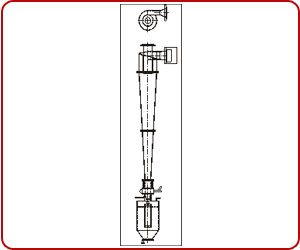

High Density Cleaner
arrow_01 Design to remove unwanted particles like Staples, Stones Screws, Nails, Pabbles and other debris from stock and it collected in the reject chamber.
arrow_01 The Reject Chamber is provided with a glass which helps to observe the rejection collected in to chamber.
arrow_01 Clogging free operation.
arrow_01 It protects the rotating part of refiners, deflakers and other down stream equipment against excessive wear and breakage.
arrow_01 Zero fiber loss.
arrow_01 Motorized model is available.
arrow_01 Customized HD cleaner up to 2500 LPM are also manufactured.
arrow_01 Fabricated with S.S. 304 and 316 material.
Model H - 25 H - 50 H - 100 H - 150 H - 200 H - 250
Inlet Pressure KG/CM2 2-3 2-3 2-3 2-3 2-3 2-3
Pressure Drop KG/CM2 1-1.5 1-1.5 1-1.5 1-1.5 1-1.5 1-1.5
Operating Consistency % 2-3 2-3 2-3 2-3 2-3 2-3
Throughput LIT./MIN. 250 500 1000 1500 2000 2500
