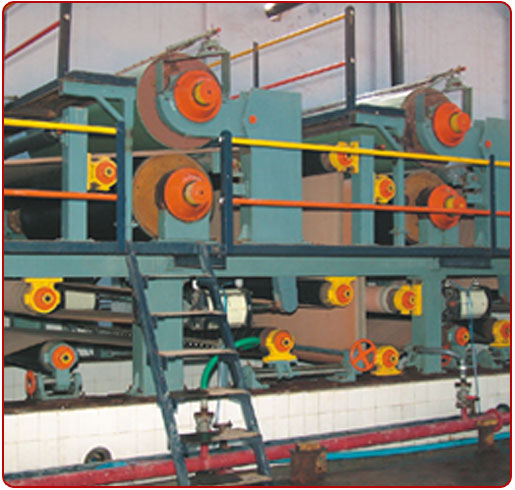

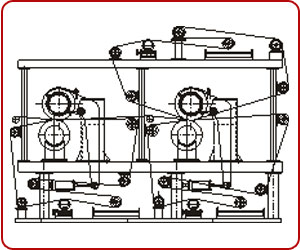

Press Section
arrow_01 The highest possible dryness should be reached with least possible number of nips.
arrow_01 Pressing must not impact paper quality.
arrow_01 The press section should compact, Simple and rigid Structure.
arrow_01 Hydraulic & Pneumatically loaded press rolls with heavy duty framing.
arrow_01 Press section is designed for 180kg. - liner cm. load for efficient water removal.
arrow_01 It is double felted first nip for two sided dewatering used for higher efficiency of press.
arrow_01 Heavy duty press section with roll dia 430 to 1200 mm.
arrow_01 For high speed application grooved or blind-drilled roll is available.
arrow_01 Large diameter presses at high press load combine optimum performance with low investment, operation and maintenance cost.
arrow_01 Production increase, reduced steam consumption and efficiency increases in case of rebuilt of an exciting machine.
